Making use of InSpec Azure Cloud Resource

Chef InSpec is an open-source framework for creating, testing, and applying compliance and security policies through human as well as machine-readable language. Chef InSpec compares the actual state of your system with the desired state, detects violations, and displays findings as a report that offers insights for remediation. 

When you deploy your Azure Resources via the Azure Portal or code using a CI/CD pipeline, the resources get deployed with a specific set of requirements that undergo an approval process. Although these deployments may look fine, they have not been validated with the expected and current state of the specific resources. This might lead to faulty deployments that could go unnoticed or cause disruption to the regular flow of processes. A validation stage is therefore highly recommended as this stage can run your pre-defined tests and validate your Azure resources to confirm they are in the desired end state. There is where Inspec-Azure helps. Inspec-Azure sits on top of Inspec and uses the Azure REST API to query the resources that have been deployed and test for security and compliance vulnerabilities.

Setting up the Environment 

Install Chef Workstation - A collection of developer tools enables devices in your fleet to interact securely with your Chef Server. It includes Chef Knife, Chef InSpec, Cookstyle, Chef Habitat, and Test Kitchen. It also includes Ruby and other dependencies, so you don’t have to install anything else to start with all the Chef tools.   

InSpec resource pack uses the Azure Ruby SDK (Software Development Kits), making it easy to write tests for resources in Azure. 

Prerequisites

Azure CLI
Azure Service Principal Account

To allow InSpec to authenticate your Azure account, you will need to create an Azure service principal

For this, you must have the following information:

  • TENANT_ID
  • CLIENT_ID
  • CLIENT_SECRET
  • SUBSCRIPTION_ID
Make sure you note the newly generated access key. Next, create an Azure credentials file in ~/.azure/credentials

The credentials file should have the following structure:

[<SUBSCRIPTION_ID>]
client_id = "<APPLICATION_ID>"
client_secret = "<KEY>"
tenant_id = "<DIRECTORY_ID>"


These values must also be stored in an environment variable. If you use dotenv, you can save these values in your own .envrc file. If you do not use dotenv, then you can create an environment variable in the way that you prefer.

Before you test your infrastructure, create a new profile by executing the command below. This will create a new folder in your current directory which contains several new files and folders related to InSpec profiles.

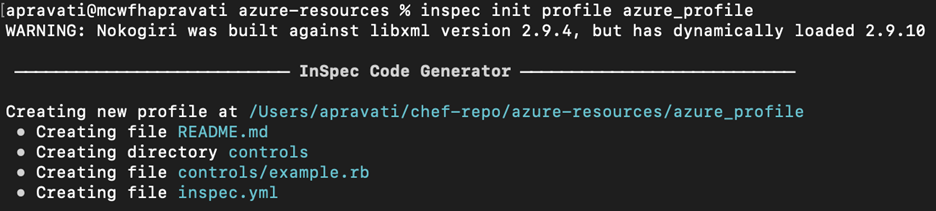

$ inspec init profile azure_profile

Creating a new profile


Edit the newly created inspec.yml file which is found in the profile directory and change default values according to needs.

name: azure_profile
title: Check resource group
maintainer: Akshay
copyright: Akshay
copyright_email: [email protected]
license: Apache-2.0
summary: An InSpec Compliance Profile
version: 0.1.0
depends:
  - name: inspec-azure
    url: https://github.com/inspec/inspec-
azure/archive/master.tar.gz
supports:
  - platform: azure

Besides the profile, you will need at least one Inspec control which defines what InSpec is going to test in your subscription. Controls are put in the controls folder of your newly created Inspec profile.

Default.rb

control 'azurerm_virtual_machine' do
  title "Check resource group"
  desc "Check if resource group is present"
  describe azure_resource_group(name: 'azureubuntu_group') do
  it { should exist }
  end
end


The above scenario checks if the resource group “azureubuntu_group” exists in the given subscription. You can also easily check whether your subnet has a network security group assigned and if this network security group allows SSH and RDP traffic from the internet.

For a complete list of available resources in InSpec azure library, you can refer to this documentation

Once you have created at least one control, run a check to see if your profile is valid or if it has any errors or warnings.

$ inspec check azure_profile
WARNING: Nokogiri was built against libxml version 2.9.4, but
has dynamically loaded 2.9.10
Location:   azure_profile
Profile:    azure_profile
Controls:   1
Timestamp:  2022-09-08T12:17:37+05:30
Valid:      true


To check for any syntax error, use this command

$ cookstyle -a

To run the checks against your Azure account, execute your InSpec profile with Azure as the target provider.

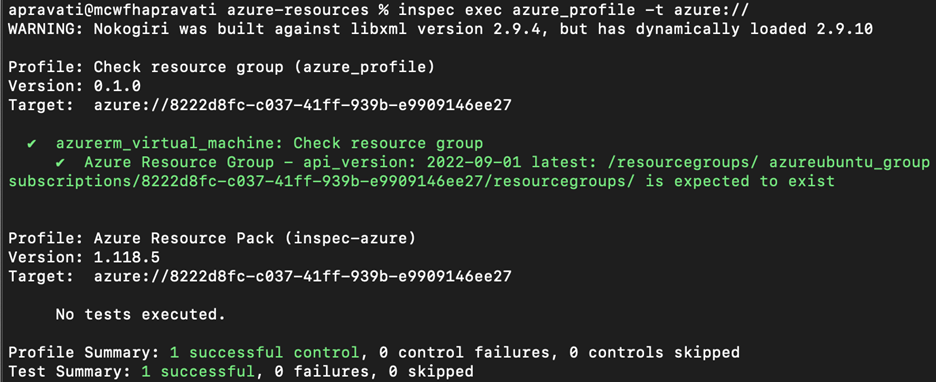

$ inspec exec azure_profile -t azure://

Execute InSpec profile with Azure


Inspec is a fast and easy-to-use tool that can help you implement Compliance as Code. By supporting many different platforms, it enables organizations to use one tool for compliance testing throughout their heterogeneous infrastructure landscape. With InSpec, you can have tests running continuously using a CI pipeline so that any changes to your (Azure) cloud infrastructure are tested in a non-prod environment and then promoted to production.
